Tunneled CVC - proximal trimming
Nutricath tunnel
Description
Nutricath Tunnel with cuff is a silicone long-term central venous catheter, totally radiopaque, with subcutaneous cuff for parenteral nutrition, drug… Read more
Indication
Central venous silicone catheter with subcutaneous cuff for long-term IV therapy (parenteral nutrition, drugs administration, chemotherapy ...)
Description

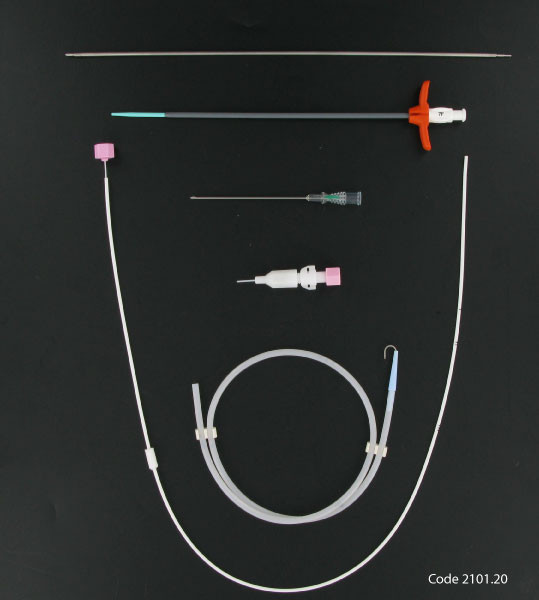

Nutricath Tunnel with cuff is a silicone long-term central venous catheter, totally radiopaque, with subcutaneous cuff for parenteral nutrition, drug administrations, chemotherapy ...Presentation in a tray (double packaging) containing :
- 1 silicone catheter (length 58 cm) with plastic stylet making the catheter slightly more rigid and subcutaneous cuff ensuring a very efficient fixation.
- 1 Desilet type introducer with peel-apart sheath for percutaneous insertion of the catheter (avoiding a cut-down insertion technique).
- 1 tunnelling needle.
- 1 detachable compression hub (code 2196) to allow regular replacement (e.g. weekly) or changing as required in case of suspected infection and / or obstruction of the hub.
References and Features
Catheter | Hub | Packaging | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Favourites | Code | Int. Ø mm | Ext. Ø mm | Flow rate ml/min | Prim. vol. ml | Length cm | Ø Fr | Colour of hub colour | Gauge G | Colour | Units/Box | Units/Case |
2101.13 | 0.8 | 1.3 | 8 | 0.50 | 58 | 4 | Yellow | - | - | 1 | 20 | |
2101.17 | 1.0 | 1.7 | 21 | 0.75 | 58 | 5 | Blue | - | - | 1 | 20 | |
2101.20 | 1.2 | 2.0 | 40 | 0.85 | 58 | 6 | White | - | - | 1 | 20 | |
2101.30 | 2.0 | 3.2 | 195 | 2.20 | 58 | 9.6 | Red | - | - | 1 | 20 | |
2182.20 | 1.2 | 2.0 | 40 | 0.82 | 60 | 6 | - | 14 | White | 5 | 20 |
Additional information
-
Contains Latex No
-
Contains animal product No
-
Pyrogen-free Yes
Documentation
-
Brochure Vascular Access Range
-
Instructions for use
